6ARC Carbon Fiber Rifle

With ammunition manufacturers constantly searching for the next viable advancement, it’s no surprise that a cartridge like the 6ARC entered the picture. Its ability to run in an AR-15 platform with minimal parts changes, combined with significantly improved ballistics over 5.56, makes it an easy candidate for wider adoption.

The appeal is straightforward: greater reach and velocity from the same size rifle. While the industry has seen its share of heavily hyped cartridges that eventually faded away, the fact that 6ARC was developed by Hornady and has undergone military testing suggests it has staying power—assuming it gains broader adoption by both manufacturers and the shooting public.

The 6mm ARC (Advanced Rifle Cartridge) was designed by Hornady in 2020. Traditional 5.56 excels at close to medium range, with effective knockdown power out to roughly 500 meters. By comparison, 6ARC from the same barrel length extends that capability to approximately 1,000 meters, making it far more effective at longer distances without moving to a larger rifle platform. Typical 5.56 loads fall in the 55- to 62-grain range, while 6ARC commonly runs bullets between 80 and 108 grains.

Anyone familiar with my previous builds knows I tend to gravitate toward either highly stylized theme rifles or camo-inspired tactical setups. Leaving a rifle in a single color—especially plain black—usually isn’t in my nature. For this build, however, the goal was different.

While designing a rifle around the 6ARC cartridge, I wanted something that could serve as a capable hunting rifle or a steel-plinking setup approaching 1,000 meters, without relying on a flashy Cerakote finish.

I already had a Coda Evolution 15-inch carbon fiber Lightning handguard and a Brigand Arms carbon fiber pistol grip on hand, and both were natural fits for the concept.

Having worked with Lauren at Chandler Tactical in Chandler, Arizona on previous projects—and having seen the quality of his work firsthand—I brought him a box of parts and asked what could be done that would look interesting without being over the top. He disappeared into the back of the shop and returned with a rifle whose receiver set appeared to be carbon fiber.

Coming from a motorsports background, I already had a strong appreciation for carbon fiber’s strength, so this immediately caught my attention. With multiple carbon fiber components already planned, committing to a full carbon fiber aesthetic made sense.

Chandler Tactical executed the look extremely well, keeping everything cohesive and understated. While they can apply the carbon fiber pattern in different colors, sticking with a traditional finish allowed all the components to blend together cleanly.

The build starts with the Ascend Phoenix billet receiver set from Next Level Armament. This design was originally created by longtime friend Nick Kurzawski, who also designed other receiver sets that have appeared under various brands over the years. Nick passed away a few years ago, and using his designs whenever possible feels like a meaningful way to keep his work alive.

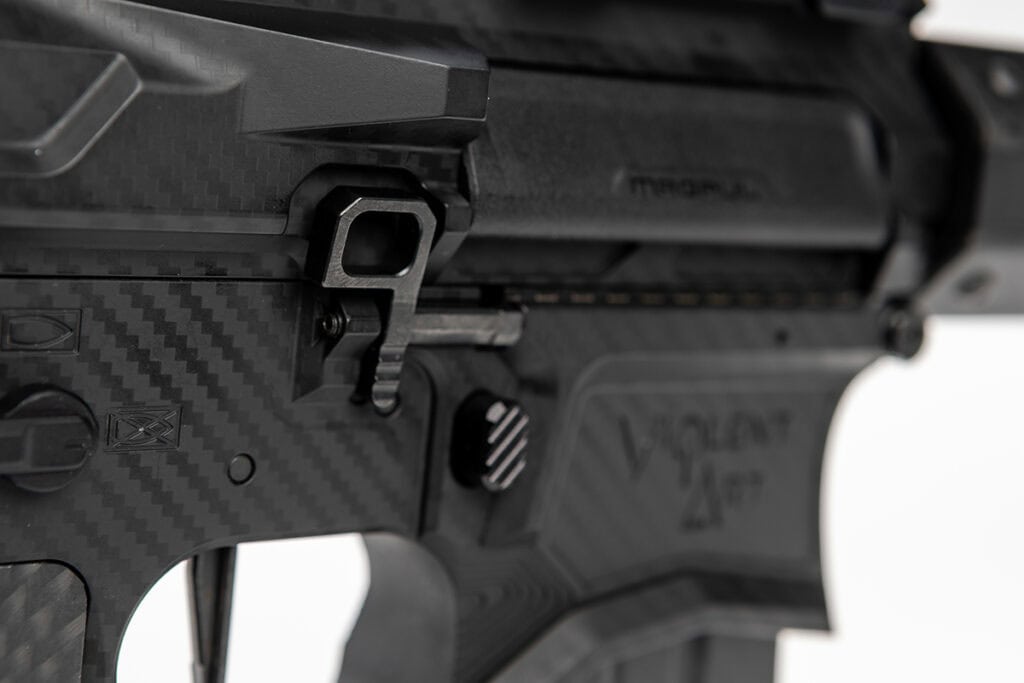

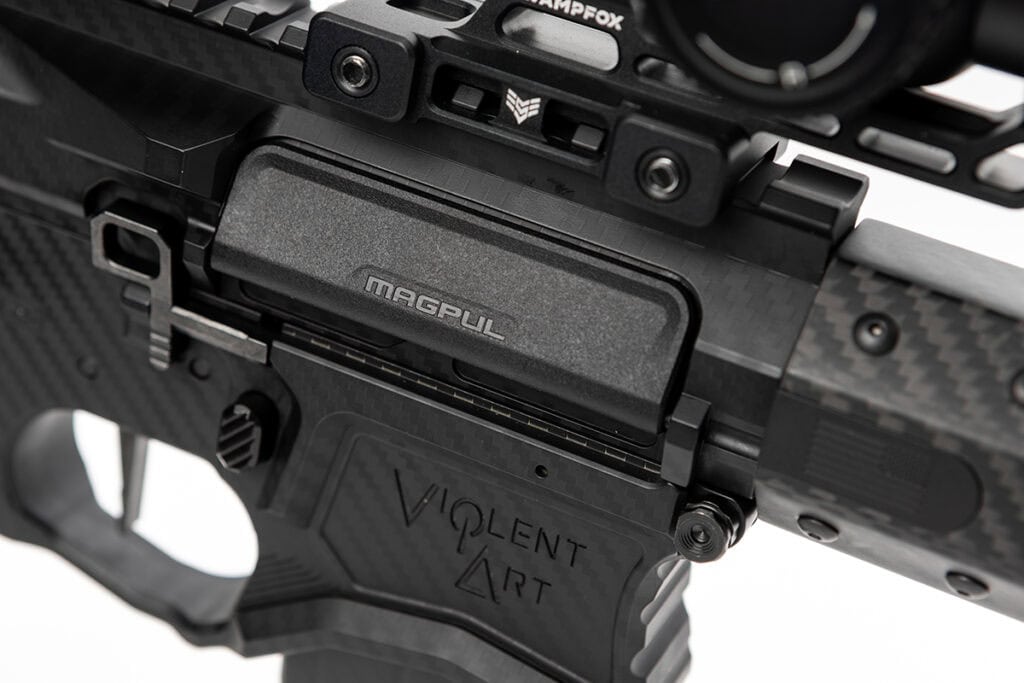

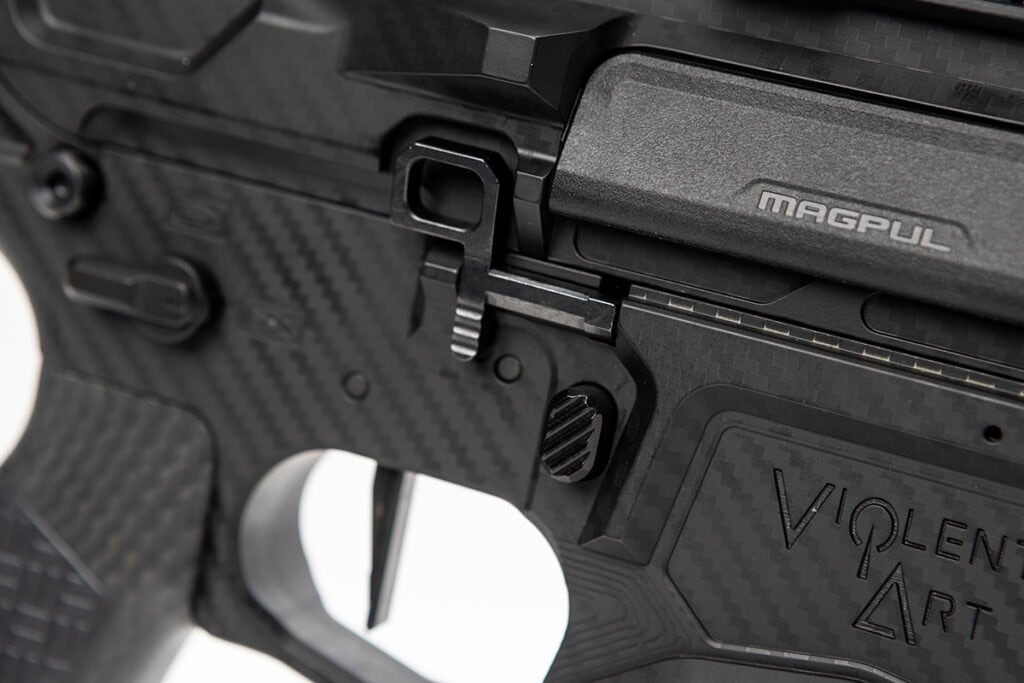

The fit and finish on the receiver set are excellent, and it features a unique proprietary ambidextrous bolt catch design. Paired with the billet upper is the previously mentioned 15-inch Coda Evolution Lightning carbon fiber handguard. It locks up securely and weighs just 7.8 ounces.

Behind the handguard sits a Rosco Manufacturing Purebred 16-inch SPR barrel. The bead-blasted finish identifies it as one of Rosco’s higher-end offerings, made from 416R stainless steel. A .750 adjustable gas block from Superlative Arms, finished in stainless, is paired with a rifle-length gas tube.

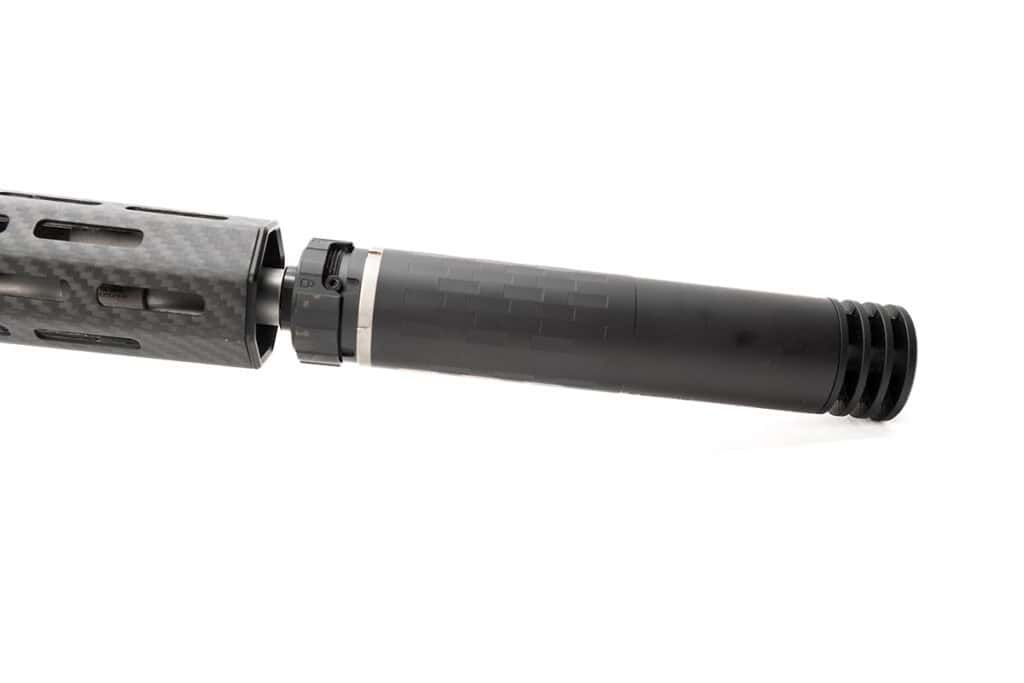

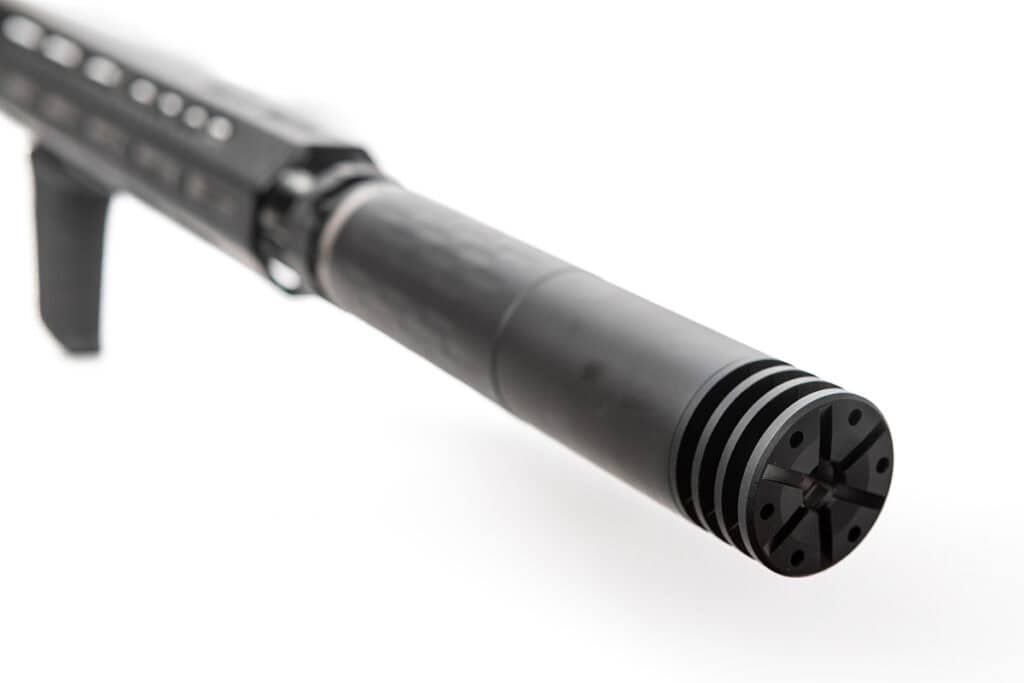

Superlative Arms’ adjustable gas blocks are widely regarded as some of the best available. At the muzzle, a SilencerCo ASR muzzle brake designed for .30-caliber rounds was installed. It performs well on its own and also supports SilencerCo’s QD mounting system for suppressed use. The suppressor selected is the SilencerCo Omega 300 with a Bravo Anchor Brake. While heavier than some exotic-material suppressors at 14.8 ounces and 7 inches long, it’s extremely durable and performs flawlessly.

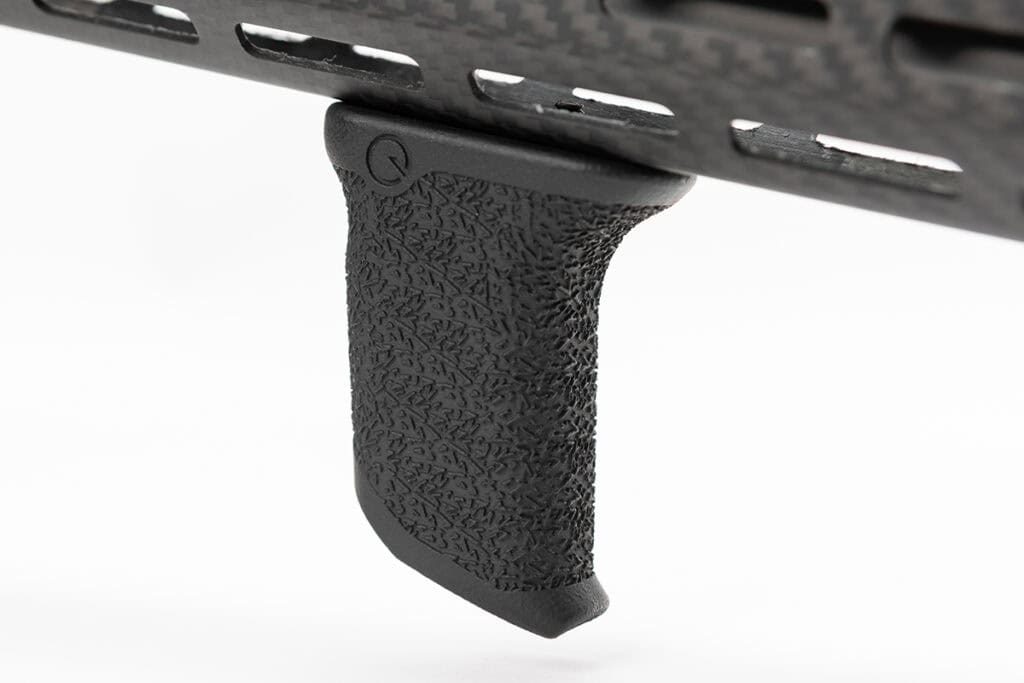

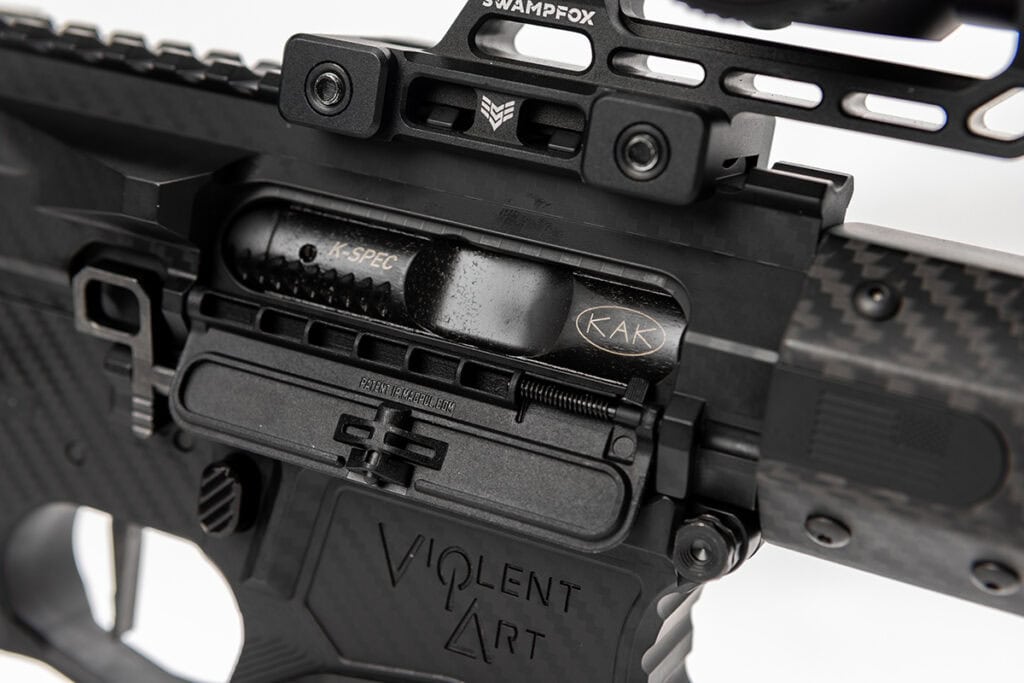

Up front, an Emissary Development Accelerator angled foregrip was chosen. It accommodates a wide range of hand sizes and works especially well for shooters who prefer a C-clamp grip. One component unique to a 6ARC AR-15 build is the bolt carrier group. KAK Industry produces a variety of specialized BCGs and has a strong reputation for reliability.

This rifle uses their K-Spec 6ARC II enhanced BCG, featuring sand cuts, downward gas venting to help reduce suppressor blowback, and dual ejectors for improved reliability.

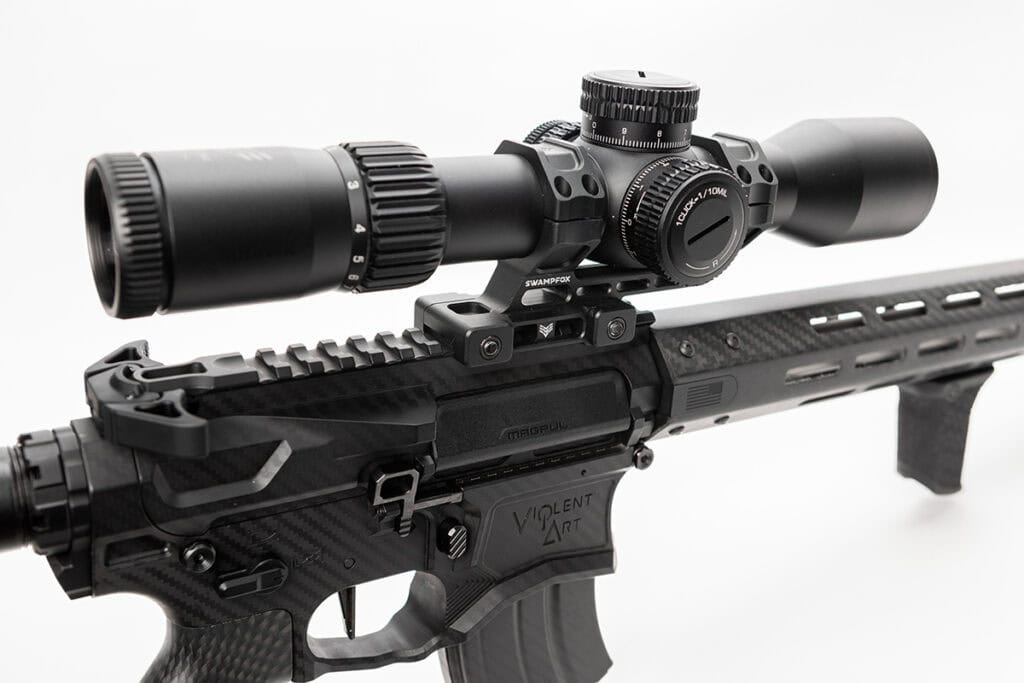

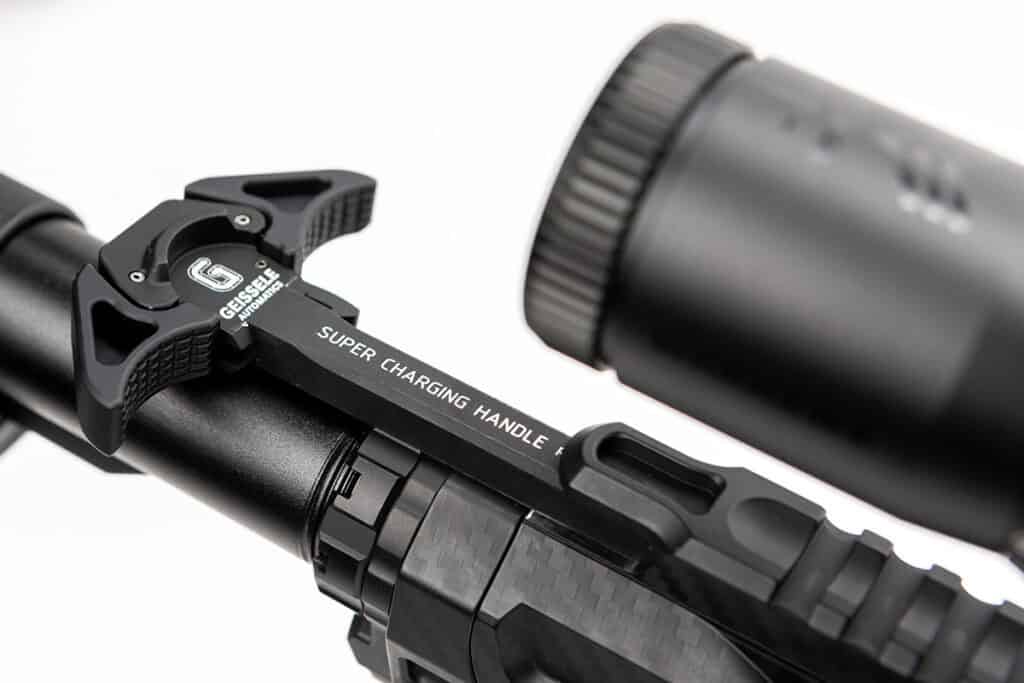

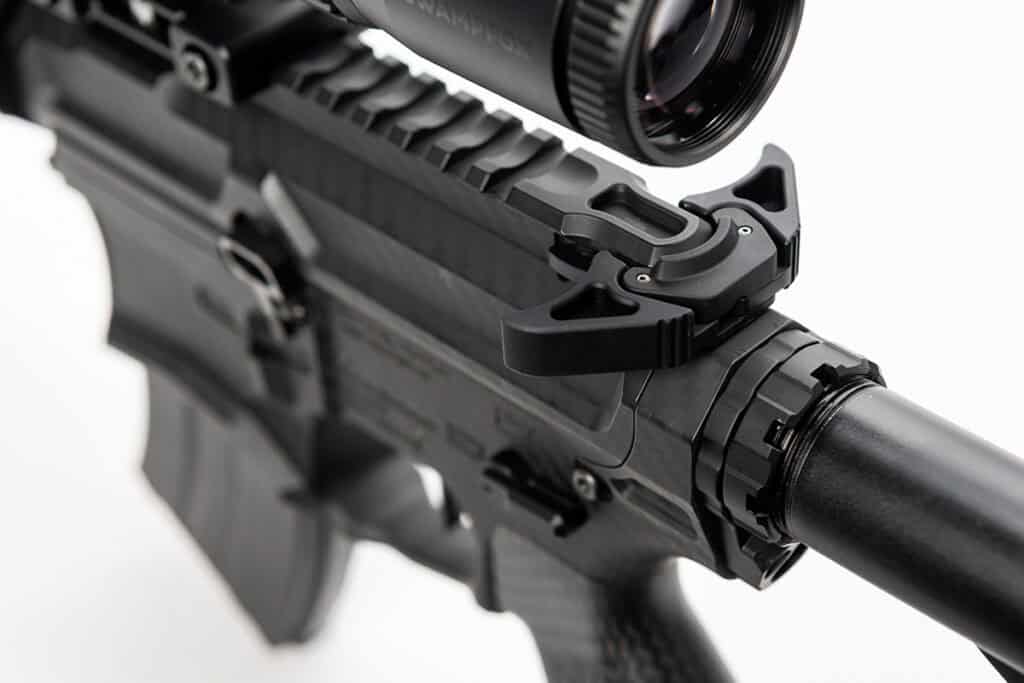

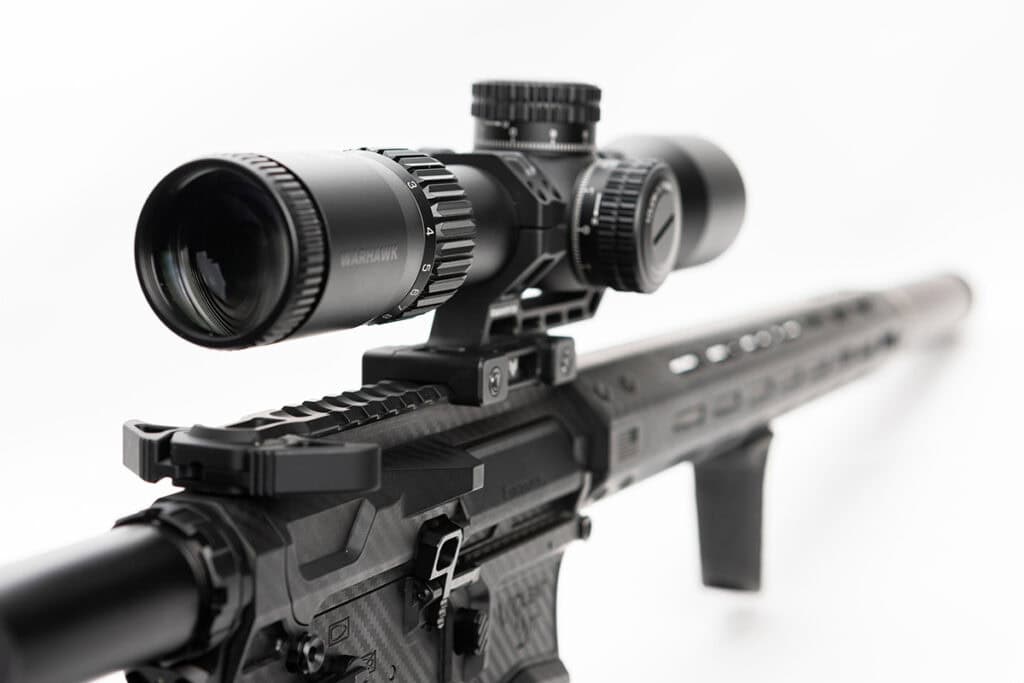

Charging the rifle is handled by a Geissele Super Charging ambidextrous charging handle. Optic selection is always a challenge given the number of options on the market and the need to balance price, quality, and magnification range. Having a Swampfox Optics Warhawk riflescope available made it an easy choice.

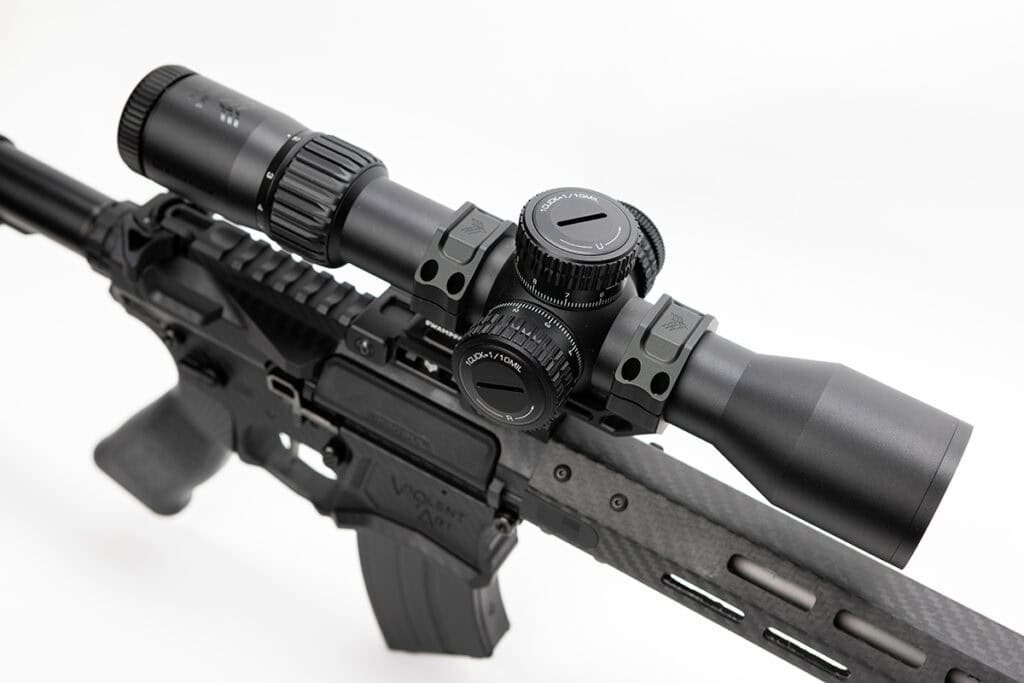

The 2–10×44 first focal plane optic offers clear glass, an illuminated Reece Mil reticle, and solid performance at an affordable price. It’s mounted in a Swampfox 34mm Freedom scope mount, which is both sturdy and cost-effective.

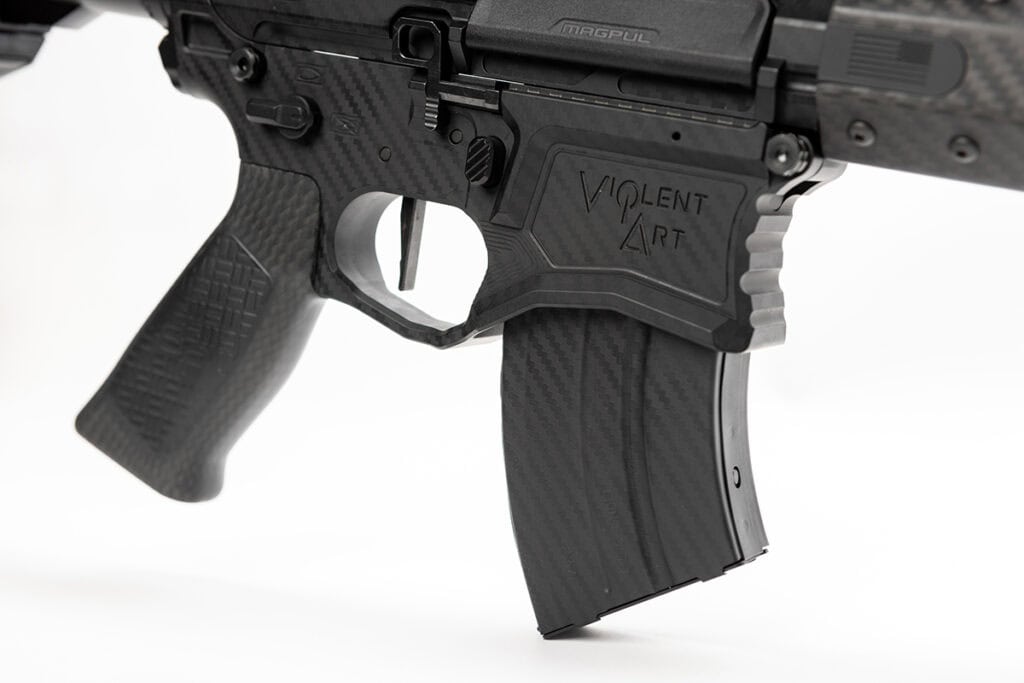

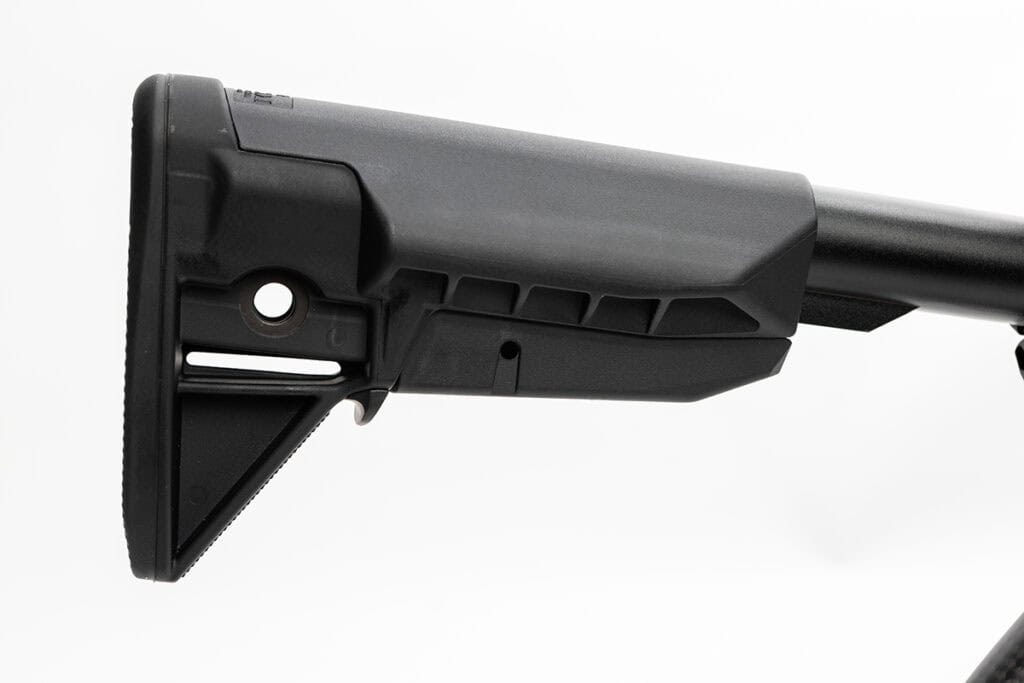

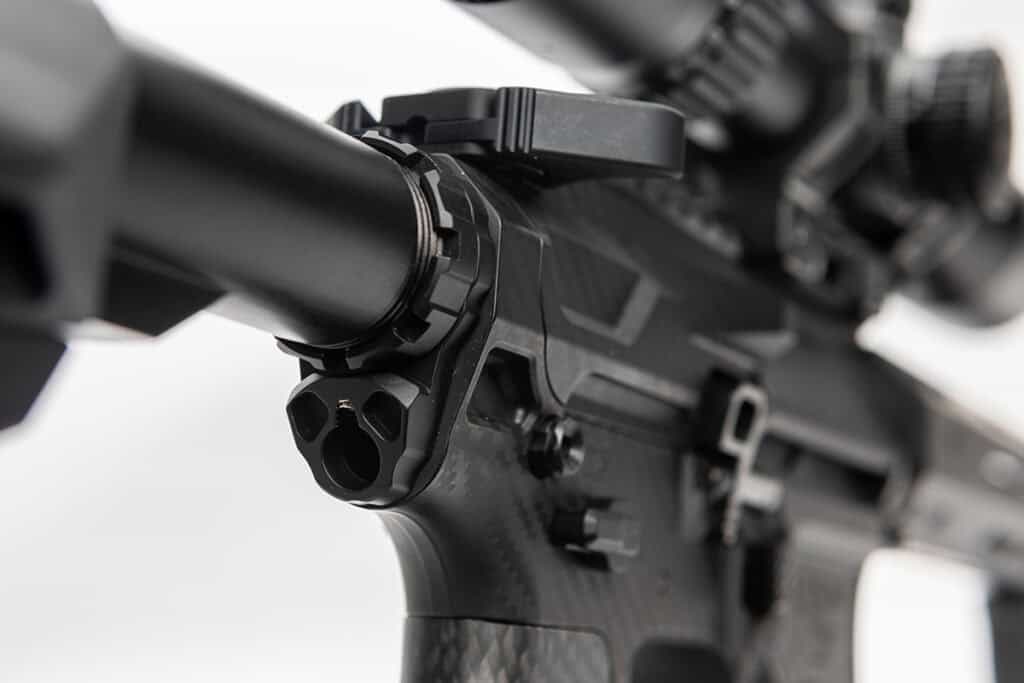

On the lower receiver, several familiar components appear. The Next Level Armament billet lower features a clean design and a flared magwell for easier magazine changes. A BCM Gunfighter Mod 0 SOPMOD stock was selected for its tight fit and comfortable cheek weld. Inside the buffer tube is an Armaspec SRS H2 buffer system, equivalent to a 4.7-ounce buffer. This self-contained unit eliminates the spring noise common with standard buffer systems and is available in multiple weights to suit different builds.

The upper and lower receivers are secured with Next Level Armament stainless enhanced takedown pins, which are lightweight and solid. An Aero Precision Pro ambidextrous safety selector allows easy manipulation from either side. A standard mil-spec magazine release is paired with a Phase 5 billet magazine release button.

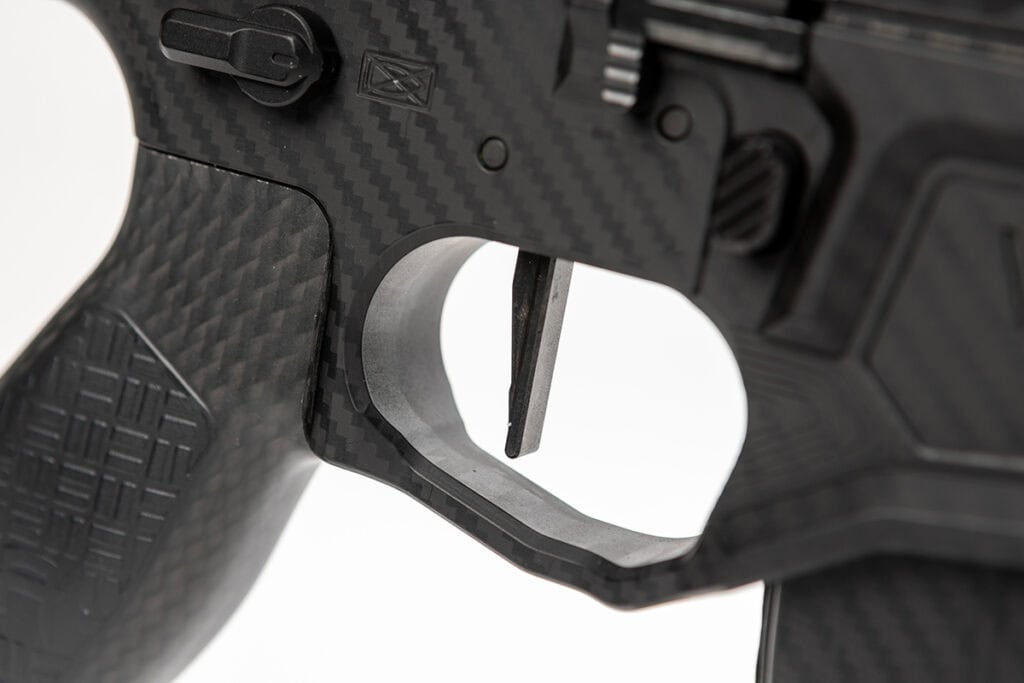

Trigger duties are handled by Ballistic Engineering’s Accurized AR flat-face trigger. It offers excellent feel, an adjustable pull weight from 2.5 to 5 pounds, and a short, clean break and reset—all at a price well below many comparable drop-in triggers.

Because the 6ARC cartridge will not fit in standard PMAGs, a different magazine is required. Duramag currently offers a 20-round stainless steel 6.5 Grendel magazine that has become the go-to option for running 6ARC in an AR-15.

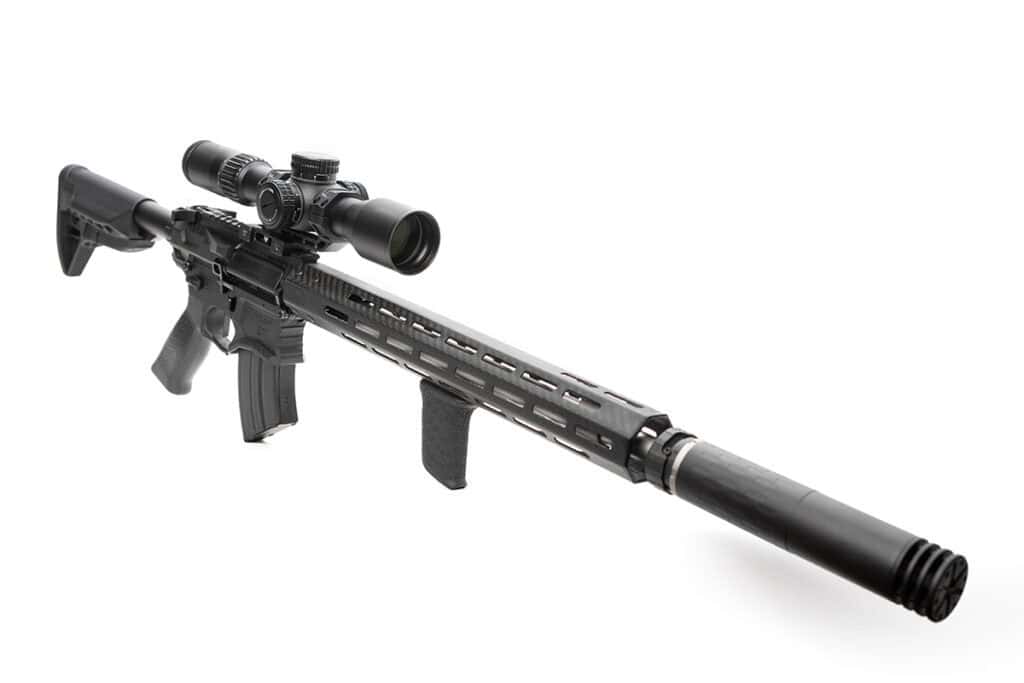

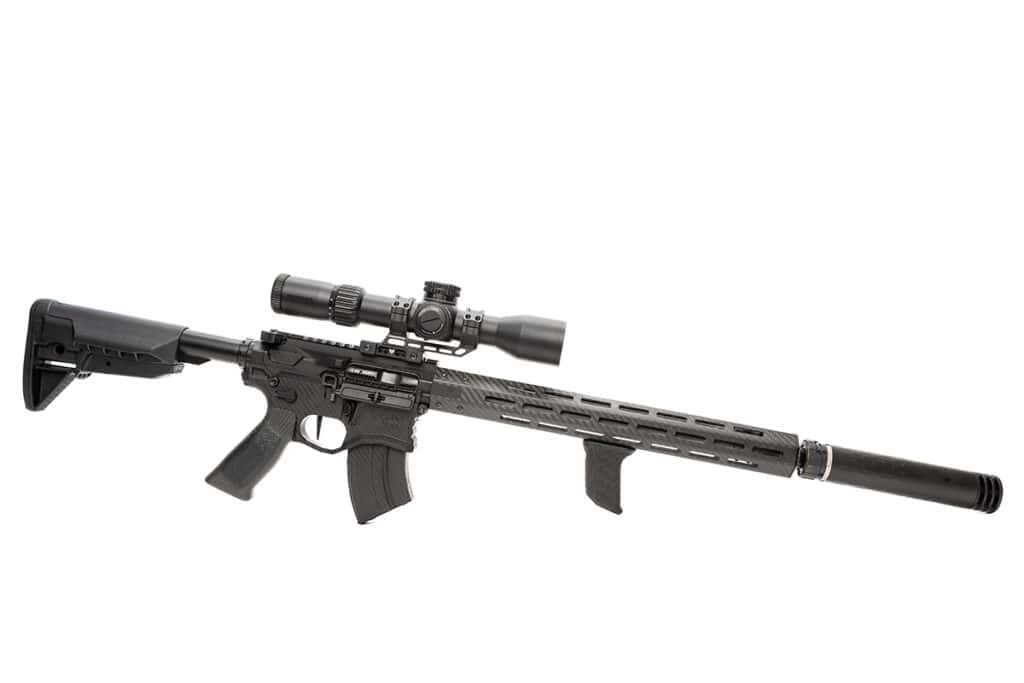

With the SilencerCo Omega suppressor and Swampfox optic installed, the rifle weighs in at 9 pounds, 15 ounces, with the stock fully extended to an overall length of 41 ¾ inches. It’s not the lightest rifle ever built, but considering its effective range and the fact that it isn’t a bolt gun or an AR-10, it remains very manageable.

Only time will tell whether the 6ARC maintains its momentum and proves itself as a more capable alternative to 5.56. Cost will play a major role in its future, as widespread adoption depends heavily on ammunition pricing becoming more accessible.

If military agencies continue to adopt it, increased demand could bring more manufacturers into the market and eventually drive prices down. For now, it’s a promising cartridge, and one that will be interesting to watch as it continues to evolve.
